Cable Acero-Cobre
Material:
Acero F24
Tratamiento:
Cobre electrolitico según IRAM 2467

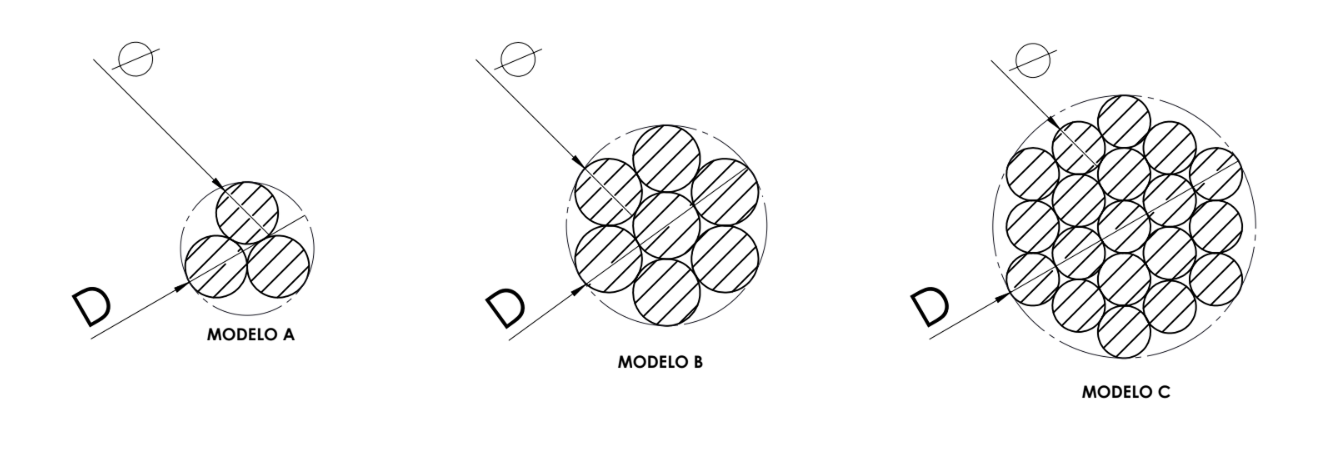

| CÓDIGO Tango | Modelo | FORMACION CANT x Ø [mm] | SECCION NOMINAL [mm²] | D Nominal [mm] |
|---|---|---|---|---|
| 010504000000160 | A | 3x2.58 | 16 | 5.6 |
| 010504000000250 | A | 3x3.25 | 25 | 7 |
| 010504000000350 | B | 7x2.52 | 35 | 7.6 |
| 010504000000500 | B | 7x3 | 50 | 9 |
| 010504000000700 | B | 7x3.56 | 70 | 10.7 |
| 010504000000950 | B | 7x4.06 | 95 | 12.2 |
| 01050400000B120 | B | 7x4.51 | 120 | 13.5 |
| 01050400000C120 | C | 19x2.56 | 120 | 13.8 |
